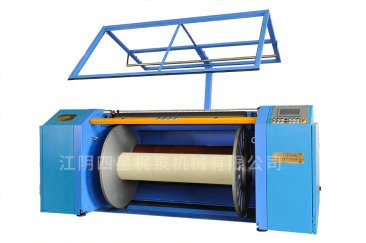

KGA 269C – High Speed Direct Warping Machine

KGA 269C – High Speed Direct Warping Machine

Key Features

The machine can be applied to directly warping various chopped yarns. It has the characteristics of high efficiency,

uniformity density and flatness thread. So this kind of machine is the ideal equipment for preparation before sizing and dyeing.

Descriptions

Main technical parameters

Working Width: 1600-2400mm
Diameter of warp beam: 800-1000mm
Warping Speed: 100-800m/min (Stepless adjustment)
Braking length: ≤3m (500m/min)
Error of winding density: ≤0.25%
Motor power: 11KW, 15KW
Spindle numbers: 640-960ends
Weight of main unit: 3800kg
Weight of Creel: 3000kgs
