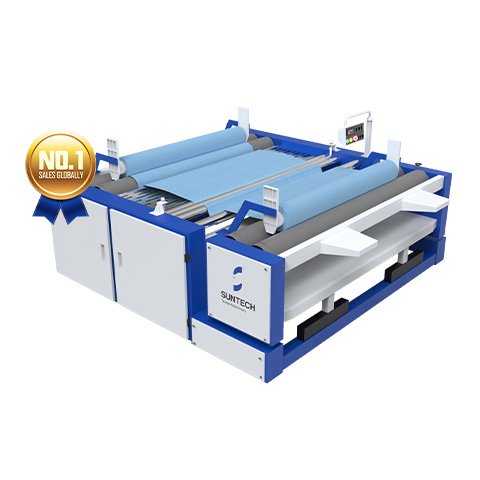

ST-FRM-VI Fabric Releasing Machine is mainly used to eliminate the tension of knit fabrics; Besides, it will keep fabrics tidy for storage. Compared with the traditional way from roll to plaited fabric relaxation, The ST-FRM-VI Fabric Relaxing Machine gives the best solution to unwind & relax the roll with consistent tension immediately to produce a perfect roll. The special air floating device and tension control system makes the fabric tension totally released from roll to roll, which can reduce out-of tolerance cut parts.

1. Tensionless Fabric Feed-positive surface unwinding from twin rollers which are driven by separate motor and inverter.
2. Fabric is unwound into a photocell controlled lazy loop, releasing fabric to its original state.
3. Fabric passes over the air-flotation zone for totally relaxing, to reduce processing time.
4. The output fabric roll can be put onto the automatic spreading machine, saving time and space.
5. Automatic Edge-alignment System, edge alignment error＜6mm
6. Accurate Length Counting(Y/M)-counting error ≤0.1m/km
7. Automatic Width Measuring Device– can be installed on machine for online measuring (option)
8. Automatic Weight Device–measuring capacity 1000-2000kgs

Immediate cutting without waiting. You can enjoy totally relaxing with accurate length counting and fabric edge controlling!
